The next evolution in vehicular deck protection.
The DriveDeck system is a polyurea waterproofing solution engineered for both pedestrian and vehicular applications where outstanding weathering, toughness, fast cure times, and solvent resistance are essential.
A multi-layer coating, applied over a concrete deck.
- 1Concrete deck
Prepared to a CSP-3 surface profile — clean, dry, and sound — before any coating goes down.
- 2D-Prime — epoxy primer
A two-component, high-performance epoxy primer that creates an optimal bonding surface and acts as an effective vapor retarder, protecting against moisture vapor emissions up to 10 lbs./1,000 sq. ft./24 hrs. in a single application (15 lbs. with a second).
- 3D-Guard — waterproofing base coat
A solvent-free, non-gassing, two-component polyurea that forms the seamless, monolithic waterproofing heart of the system.
- 4D-Grip — wear course with aggregate
A high-solids, two-component aliphatic polyurea top coat with broadcast aggregate for a durable, slip-resistant, traffic-grade wearing surface.
Three core products, engineered as one system.
Every value below comes straight from the published technical data sheets — download them for full application details.
D-Prime
High-performance, two-component epoxy primer for concrete — the bond and moisture-control layer.
- Tensile strength (ASTM D638)4,200 psi
- Compressive strength (ASTM D695)12,000 psi
- Adhesion (ASTM D4541)> 400 psi
- Cure time @ 75°F8–10 hrs
- Coverage200 sq. ft./gal.
D-Guard Base Coat
Solvent-free, two-component polyurea waterproofing — the seamless protective core of the system.
- Elongation (ASTM D412)600%
- Tensile strength (ASTM D412)2,000 psi
- Tear resistance (ASTM D1004)250 lbs./in.
- VOC content (mixed)< 1 g/L
- Cure time @ 77°F3–5 hrs
D-Grip Top Coat
High-solids aliphatic polyurea wear course with broadcast aggregate for traction and abrasion resistance.
- Tensile strength (ASTM D412)3,750 psi
- Tear resistance (ASTM D1004)350 lbs./in.
- Hardness, Shore A (ASTM D2240)90
- Softening point (ASTM D-36)240°F
- Traffic-ready48 hrs
D-Seal — high-movement sealant
A premium joint sealant for the cracks, control joints, and transitions around the system — ±50% joint movement, 100% solids with zero shrinkage, solvent- and isocyanate-free, ultra-low VOC (21.22 g/L), and paintable.
Polyaspartic 87% Solids — clear top coat option
A zero-VOC (clear), non-yellowing aliphatic polyaspartic coating with a 2–4 hour cure, applied up to 14 mils in a single coat — 6,500 psi tensile strength and strong abrasion and chemical resistance.
Specified to the traffic it will carry.
The same core products, built up to match the duty level — per the DriveDeck Application Guidelines.
Light-Duty Pedestrian System
For elevated walkways, balconies, and rooftop pedestrian areas.
- D-Prime primer8 wet mils
- D-Guard base coat32 wet mils
- D-Grip top coat + aggregate16 wet mils
- Foot traffic after16 hours
Heavy-Duty Pedestrian & Vehicular System
For parking structures, ramps, and traffic-bearing decks.
- D-Prime primer8 wet mils
- D-Guard base coat32 wet mils
- D-Grip intermediate coat + aggregate15 wet mils
- D-Grip finish coat + aggregate18 wet mils
- Vehicular traffic after72 hours
Cracks, control joints, transitions, and cove details receive dedicated detail coats and D-Seal treatment before the field coating goes down. Steeper ramps can take larger aggregate for added traction.
Fast cure. Fewer surprises.
DriveDeck’s two-component chemistry cures by reaction — not by waiting on ambient moisture — for consistent results and quick returns to service.
Prepare
Shotblast to a CSP-3 profile; the deck must be clean, dry, sound, and moisture-tested.
Detail
Treat cracks, joints, and transitions with detail coats and D-Seal high-movement sealant.
Prime & base
D-Prime bonds and blocks vapor; D-Guard builds the seamless waterproofing membrane.
Wear course
D-Grip with broadcast aggregate delivers the finished, slip-resistant traffic surface.
Installed by licensed contractors to Multicoat’s specifications, with Multicoat technical guidance available throughout. Full procedures are in the Application Guidelines.
Built for decks that work for a living.
DriveDeck systems are engineered for pedestrian and vehicular traffic decks, parking structures, and the demanding spaces around them:
Low-odor chemistry keeps occupied buildings usable during the work — a fit for hospitals, campuses, and dense urban sites.

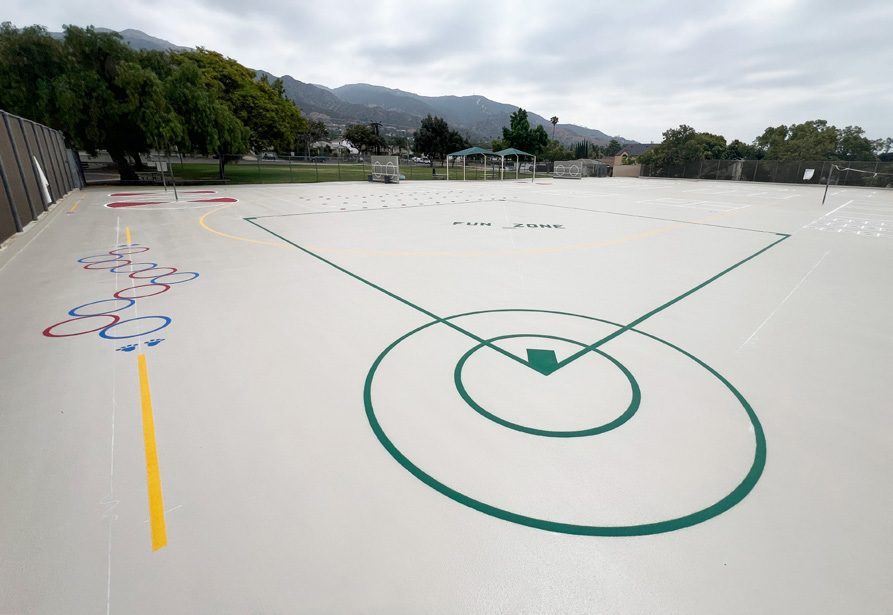

A coated pedestrian surface in service — seamless, slip-resistant, and UV-stable.
Nine standard colors. Custom on request.
Standard DriveDeck top coat colors are shown below; custom colors can be developed subject to minimum order quantities.
Not all colors are available in all products. On-screen colors are approximate; applied colors may vary with surface texture, lighting, and application method. Download the color chart (PDF) for reference.
Want the full technical picture?
Every data sheet, the application guidelines, the specification, and the warranties are free to download — or talk it through with the team.
